DTP turntable presses of the latest generation for Röben

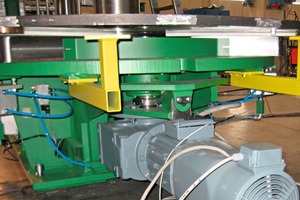

»1 Turning of the table

»2 Movement of the clay column setting down and the suction head unit

»3 Setting down of the clay column

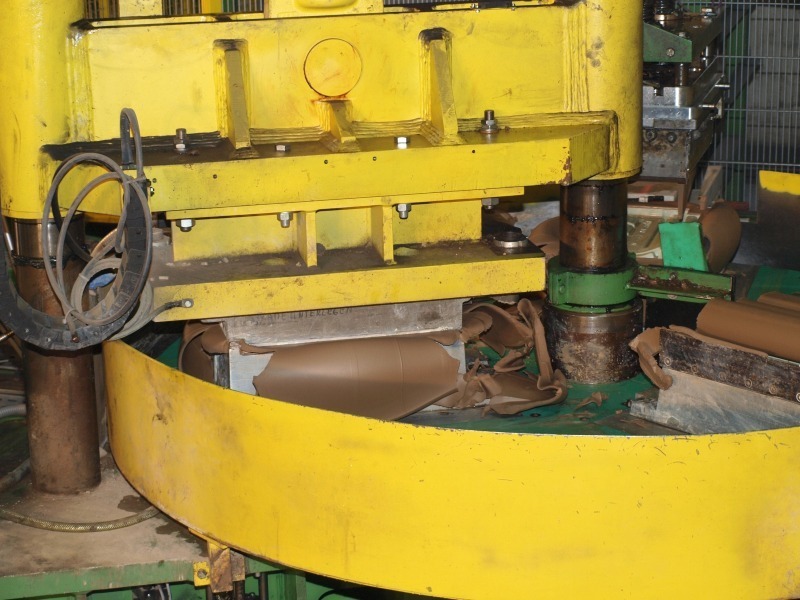

»4 Pressing

»5 Moving of the suction head up and down to cut out the tiles, take them off and set them down

»6 All circuits of the new hydraulic system are completely separated from each other

»7 The working ranges areas requiring frequent operator access are secured with light barriers

»8 The proven pivoting operating panel was equipped with a touch screen to operate the machine

»9 a and b All essential operating parameters can be visualized on screen

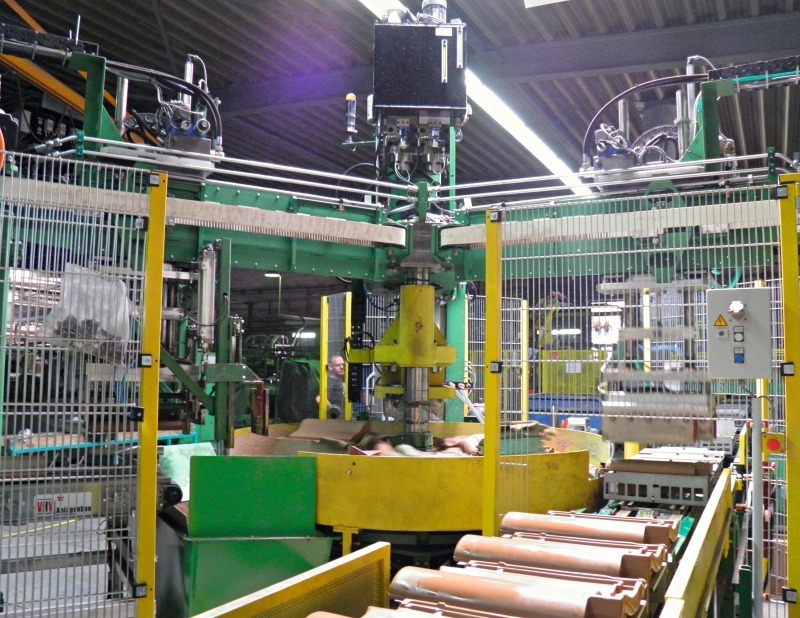

»10 The machine is executed as DTP3 for installation at an angle of 120°, allowing for the assembly of up to three lower moulds

Based on their positive experience with the DTP press that they have been using for many years, Röben Tonbaustoffe decided to invest in a second turntable press of ultramodern design for its Brüggen plant. The new press was realized in cooperation with Rieter/Morando, to increase the capacity of accessory tiles production.

The DTP accessories press has been built for more than 30 years. The machine is regularly upgraded and adapted to state-of-the-art requirements. For many years now, the well-established basic layout of the machine has been recognized as standard for the production of high-quality and especially geometrically complex accessory tiles. The basic functionality of the machine relies on the following characteristics:

› Turntable for the lower moulds, suitable for holding up to three or four moulds, depending on its setup

› Pressure piece with a top mould

› Flexible handling unit to position the...
