Nelskamp solar fixing system made of aluminium
A support tile for all energy roofing systems

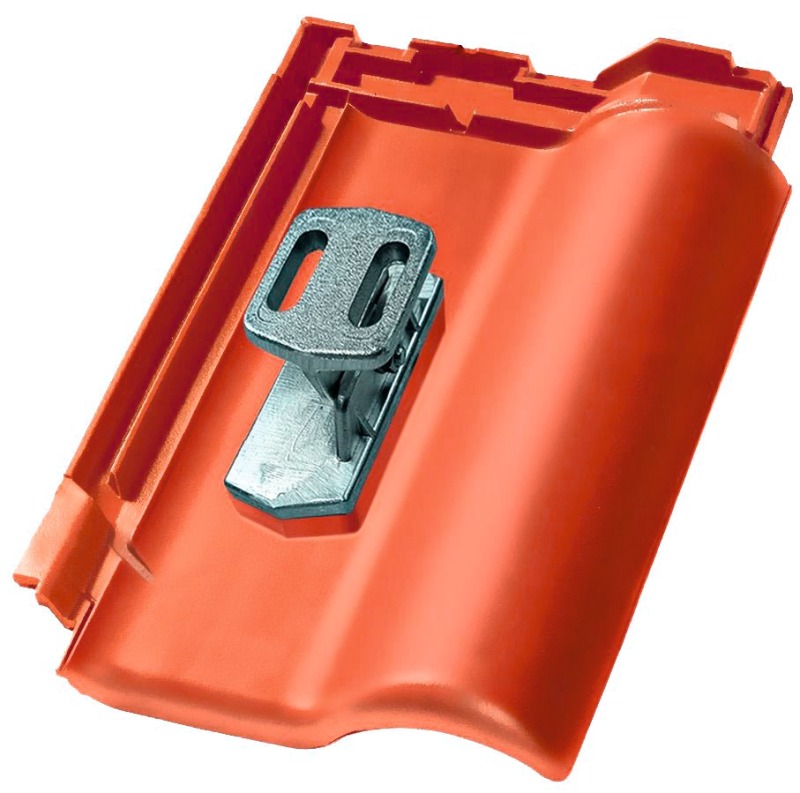

If in the case of conventionally installed energy roofing systems, the load of the solar system cannot be efficiently transferred into the roof structure via the support structure and roof covering, clay roofing tiles can break. At particular risk are roofing tiles that must be ground prior to installation. Solar support tiles made of robust aluminium from Nelskamp keep all commercially available elevated energy roofing systems for heat and power generation securely fixed to the roof. The aluminium support tiles match the shape and colour of the selected roof covering and blend harmoniously into the roof surface. Loads are not transferred to the roofing tiles, but to the stable aluminium tiles. These can better withstand the mechanical pressure. The material is light in weight and easy to use.
Aluminium solar support tiles can be used on many different roofs, the roof pitch ranging from 10 to 60 degrees. They are installed during covering of the roof. They are screwed to the roof laths and solar support connection fixed to the support tile, before the installation of the energy roof system begins.
For clay roofing tiles, the aluminium support tiles are available for the models F 12 Ü-Süd and F 13 Classic as well as for the Nibra large clay roofing tiles F 10 Ü, F 12 Ü-Nord, F 7, DS 5, MS 5 and G 10. For all other models, support tiles made of PVC are available in the range.
