Cobra clay degassing systems for Nelskamp GmbH roofing tile plant

Reliable degassing at the extrusion press with dry vacuum technology

The company Dachziegelwerke Nelskamp GmbH produces around 40 mill. roofing tiles and accessories at the Gross Ammensleben location near Magdeburg, Germany.

Nelskamp operates one extrusion press in each of the two modern production lines. One of the extrusion presses has been equipped with a Cobra clay degassing system supplied by Busch since April 2018. On account of the extremely good experience in terms of reliability, operational safety and economic efficiency, the second extrusion press has now also been equipped with an identical degassing system from Busch.

In the past, liquid ring vacuum pumps were used to extract the air from the clay body directly from the vacuum chamber at the extrusion presses. Initially, a mixture of oil and water was used as the operating fluid; later, only water was used. This was not a satisfactory solution for the Mechanical Maintenance Manager because the vacuum level was subject to fluctuations. The liquid ring vacuum pumps reached the lowest ultimate pressure of 33 mbar at a water temperature of 15° C. If the temperature of the water as operating fluid increased due to the ambient temperature, for example, the vacuum level declined. In addition, maintenance work on the vacuum pumps was very time-consuming and drove up operating costs. There were also vacuum pump failures. The liquid ring vacuum pumps were not regulated, meaning they were permanently running at full speed.

Resource-saving and environmentally friendly production

As a modern family-owned company focused on sustainable management, Nelskamp pays attention to resource-saving and environmentally friendly production methods. Energy consumption in the plants is therefore viewed extremely critically and potential savings are constantly being sought. This was also one of the reasons to look for alternatives for liquid ring vacuum technology.

Core component:
screw vacuum pump

Finally, Busch Vacuum Solutions found a suitable clay degassing system with a Cobra NX screw vacuum pump at its core. These screw vacuum pumps do not require any operating fluid for compression; meaning they work completely dry, without water, oil or any other liquid. The upstream standing filter has been optimized for separating dust and particles from clay bodies. The frequency-controlled motor of the Cobra vacuum pump and the integrated demand-driven control unit enable the defined target value of the vacuum level in the vacuum chamber to be precisely maintained or adjusted in the event of temperature fluctuations in the material or the environment. This is an important aspect for the plant management because it ensures that the vacuum level is always correct and that a consistently high quality can be produced.

The Cobra clay degassing system (»1) was delivered completely mounted on a base frame and only needed to be connected. In addition to the vacuum pump and the control cabinet, the compact unit consists of an upstream standing filter for dust and particle separation, an additional inlet filter with a polyester insert and a complete cooling water circulation unit.

In principle, a Cobra screw vacuum pump (»2) can be operated at pressures between 0.01 mbar and atmospheric pressure. As the common vacuum levels for degassing clay are between 50 and 100 mbar, the vacuum pump has sufficient reserves – both upwards and downwards. The Cobra vacuum pump almost never operates at full power with 50 Hertz, thanks to the demand-driven control unit. This means that power consumption is reduced because only the amount of power required for the actual demand is consumed. Compared to the previous solution with liquid ring vacuum pumps, this results in considerable energy savings, especially since screw vacuum technology already reduces the power consumption compared to liquid ring vacuum technology. Around 8 000 operating hours are recorded each year because the vacuum pump is in operation practically all year round and around the clock, with the exception of brief interruptions.

Since the Cobra clay degassing system was commissioned in April 2018, it has been operating without any malfunctions, let alone failures. Maintenance work is limited to an absolute minimum. A maintenance contract with Busch stipulates that a Busch vacuum engineer will service and inspect the system once a year. Otherwise, the inspection is limited to regular visual inspections.

Company management and the individual responsible for maintenance agree that they have opted for the technically and economically optimum solution in the form of the Cobra clay degassing system. That is why the previous liquid ring vacuum pump on the second extrusion press has now been replaced by a Cobra clay degassing system.

Busch Vacuum Solutions


Related articles:

Issue 03/2022

High-Quality Roof Tiles Thanks to State-of-the-Art Vacuum Technology

At the Wienerberger GmbH brick factory in Bad Neustadt, vacuum technology is used for degassing the clay mixture in the extrusion press. A vacuum system with a dry COBRA NX screw vacuum pump as the...

Issue 6/2017

Vacuum systems in the ceramic industry

Vacuum is a major component in the processing of ceramic bodies. Particularly in mixers and extruders, vacuum technology enables degasification of clay compounds, hence precluding air inclusions at...

Issue 4/2016 Wienerberger Eisenberg now de-airing roof tiles with variable-speed Atlas Copco pump

New vacuum pump saves 70 % energy

At their plant in Eisenberg, Wienerberger produces all kinds of clay roof tiles, including small quantities of historical tiles like plains for the French market. Along with diverse uniques, such...

Issue 2/2020 Atlas Copco

Ibstock plc increases productivity by using powerful screw vacuum pumps

With its 200-year history in brick manufacturing and 38 production plants, Ibstock plc is today one of the largest manufacturers of clay and concrete building products in the UK. The company employs...

Issue 02/2024

Less maintenance effort thanks to advanced vacuum generation

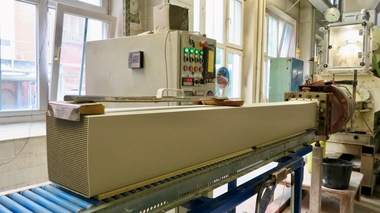

Industrial ceramics have been produced in Hermsdorf, near Jena, Germany, since 1890. In the past, high-voltage insulators; now, ceramic honeycomb bodies for heat exchangers, ventilation and emission...
