Effective dryer control

Non-destructive moisture measurement systems work from the surface to determine moisture content. As a result, the water content of near-sensor layers has the strongest influence on the delivered measured value. Accordingly, it is difficult to determine the moisture content in the inner core of a drying brick. By means of an ultrawide band microwave radar system (UWB radar), it is possible to observe the drying process of green bricks. Based on a comparison with a simulation of the drying process in the Delphin programme and implementation of the measurement results in the ZiTro programme developed specifically for the brick and tile industry, the spatial moisture distribution in green bricks at different times can be determined. For the measurement and the simulation, the climate data and the corresponding material properties are needed.

In the talk, the measurement system and measurements under laboratory conditions are presented. Possibilities for determination of the core moisture by means of the application-oriented dielectric moisture measurement system and the limitations derived from the results obtained are discussed.

Dr. Ralf Wagner, Material Research and Testing Institute at Bauhaus University of Weimar; Dr. Anne Tretau, Institut für Ziegelforschung Essen e.V.


Related articles:

Issue 2017-6

Effective dryer control based on material-specific moisture content – Part 1: Material data

Drying green products is easily the most energy-intensive process step in clay brick and tile production. For the purpose of process control, it is interesting to know the distribution of moisture in...

Issue 2015-3

Measuring material moisture in the brick and tile industry

1 Introduction Most steps of the production process are decisively dependent on the moisture content of the material. For example, the moisture content of the raw material affects the water content of...

Issue 2020-5 Anne Tretau1, Ralf Wagner2, Frank Bonitz2, S. Alireza Pakdaman Shahri1

Material-specific moisture determination during brick drying

1 Introduction The objective of drying green bricks is to remove any water necessary for plastic shaping prior to ceramic firing. For this purpose, convection drying is used. Control of the dryer in...

Issue 2021-01 Keller HCW

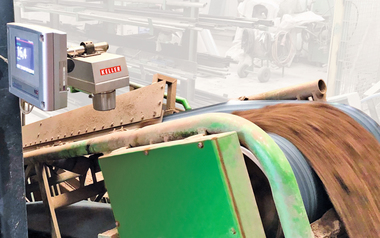

K-Matic Moisture Control – Online moisture measurement
